Building #7 – Zapa Manufacturing Community
Description
Overview
Total Building Area: 36,170.60 Sq. Ft. (3,361.44 m²).
Building Height: Minimum: 27.08 Ft. (8.25 m). | Maximum: 35.00 Ft. (10.67 m).
Production Area:
Total Area: 29,496.28 Sq. Ft. (2,740.38 m²).
Flooring: 6-inch polished concrete (152 mm).
Fire Suppression: Two hose hydrants installed on the production floor.
Climate Control: 120 tons of HVAC (1,440,000 BTU or 421.84 kW).
Bathrooms – Production Area:
Total Area: 1,055.23 Sq. Ft. (98.04 m²).
Women’s bathroom: 8 washbasins, 11 toilets, 2 showers.
Men’s Bathroom: 5 washbasins, 6 toilets, 7 urinals, 2 showers.
Office Area:
Total Area: 2,677.73 Sq. Ft. (248.77 m²).
Features:
- Ceramic tile flooring.
- Drop ceiling with recessed lighting.
- Coffee station with two electrical outlets.
- Three electrical outlets distributed throughout each office.
Women’s Bathroom: 2 washbasins, 2 toilets.
Men’s Bathroom: 2 washbasins, 1 urinal, 1 toilet.
Climate Control: 7.5 tons of HVAC (90,000 BTU or 26.39 kW).
Chemical Storage Room:
Total Area: 252.21 Sq. Ft. (23.43 m²).
- Two secure, dedicated rooms.
Compressor Room:
Total Area: 501.42 Sq. Ft. (46.58 m²).
- Designed for air compressors or related equipment.
- 50 AMP service provided.
Building Access:
Rear Access:
- Three 8 Ft. x 10 Ft. roll-up doors (2.44 m x 3.05 m) for docks.
- One 10 Ft. x 10 Ft. roll-up door (3.05 m x 3.05 m) for vehicle entrance.
- One emergency exit.
Utilities and Infrastructure:
Electrical Power:
- 500 KVA / 480V transformer (200 KVA contracted with CFE).
- 112.5 KVA / 220/127V dry transformer.
- Panelboards: 480/377V and 220/127V.
Lighting:
- 190W LED fixtures (27 in. x 16 in. or 686 mm x 406 mm).
- Provides 50 foot-candles (538 lux) illumination.
Water Line:
- 2” diameter.
Telephone:
- Phone line outlets distributed throughout the office area.
- Telmex exclusive carrier for the park.
Common Areas:
Lunch Room:
- Indoor Area: 1,267.21 Sq. Ft. (117.74 m²).
- Outdoor Area: 408.66 Sq. Ft. (37.96 m²).
Climate Control:
- Indoor Area: 1,267.21 Sq. Ft. (117.74 m²).
- Outdoor Area: 408.66 Sq. Ft. (37.96 m²).
Porch Area:
- Total Area: 511.85 Sq. Ft. (47.57 m²).

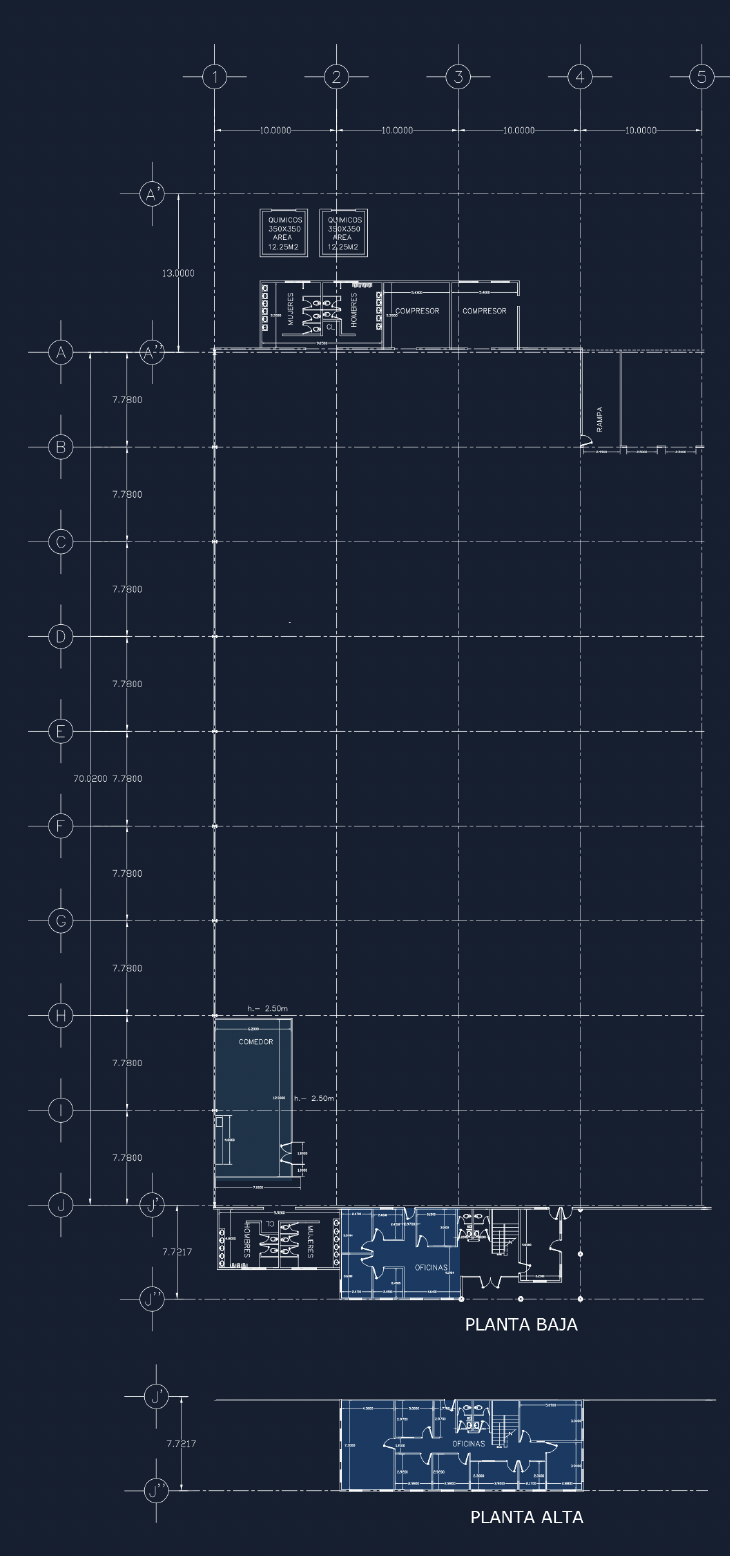

Area Breakdown:
Space: Production Area (Including loading docks) | 29,496.28 | 2,740.38
- Indoor Area: 1,267.21 Sq. Ft. (117.74 m²).
- Outdoor Area: 408.66 Sq. Ft. (37.96 m²).
Climate Control:
- Indoor Area: 1,267.21 Sq. Ft. (117.74 m²).
- Outdoor Area: 408.66 Sq. Ft. (37.96 m²).
Porch Area:
- Total Area: 511.85 Sq. Ft. (47.57 m²).
| Space | Area Sq. Ft. | Area (m²) |
|---|---|---|
| Production Area (Including loading docks) | 29,496.28 | 2,740.38 |
| Bathrooms – Production Area | 1,055.23 | 98.04 |
| Office Area | 2,677.73 | 248.77 |
| Chemical Storage Room | 252.21 | 23.43 |
| Compressor Room | 501.42 | 46.58 |
| Lunch Room (Indoor & Outdoor) | 1,675.87 | 155.70 |
| Porch Area | 511.85 | 47.57 |
